This matrix describes the Markov chain involved in riffle shuffling of a deck of cards according to a model proposed by Gilbert, Shannon and Reeds, and made famous by Diaconis and coauthors [1]. For a deck of n cards, the state space is the set of all permutations, of dimension factorial(n). Fortunately, as shown by Bayer and Diaconis, an equivalent chain can be constructed on a state space of dimension just n, the number of "rising sequences" in the deck. Formulas for the entries of this n x n matrix P are essentially contained in [1] and have been worked out explicitly by Gessel and Jonsson and Trefethen [2].

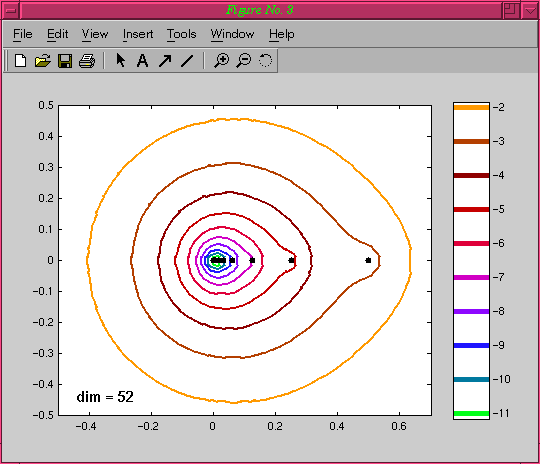

Riffle shuffle is a famous example of a linear process with a strong transient effect. Powers of P govern the approach to randomness, but there is virtually no randomization at first followed by sudden randomization later (asymptotically at the shuffle 1.5 log_2(n)). Following standard conventions in Markov chains, this code produces a matrix P designed to act on row vectors on the left. To see the transient effect with the limiting case P^inf subtracted off, look at the matrix A = P-Pinf and its powers. The probabilistically correct norm in which to analyze powers and pseudospectra is the 1-norm for the matrices as operating on rows, which is the inf-norm according to standard Matlab conventions. Thus pseudospectra, in particular, should in principle be examined in the Matlab inf-norm, not the 2-norm utilized by EIGTOOL. Jonsson and Trefethen found that these norms make little difference to the pseudospectra (though the difference would be huge if one were working with the underlying matrices of dimension n! rather than n).
[1]: D. Bayer and P. Diaconis, "Trailing the dovetail shuffle to its lair", Annals Appl. Probab. 2, 1992, 294-313.
[2]: G. F. Jonsson and L. N. Trefethen, "A numerical analysis looks at the `cut-off phenomenon' in card shuffling and other Markov chains", in "Numerical Analysis 1997" (Dundee 1997), Addison Wesley Longman, Harlow, 1998, 150-178.
