Matrix Types

It is possible to call EigTool with three different types of matrices: Dense Square Matrices, Sparse Square Matrices and Dense Rectangular Matrices.

Dense Square Matrices

If a dense square matrix has dimension smaller than about 1000, it is possible to compute a Schur decomposition of the matrix in a reasonable amount of time. For matrices such as these, this is the first thing EigTool does, obtaining the eigenvalues from the diagonal entries of the triangular Schur factor. Assuming that no
options have been defined, the axes to compute the initial pseudospectra on are dertermined by the position of the eigenvalues. A default number of grid points based on the matrix dimension will be chosen, and once the singular value data has been computed appropriate Contour Levels are calculated. As an example, the command eigtool(gallery('grcar',100)) produces the figure:

EigTool and Grcar(100)

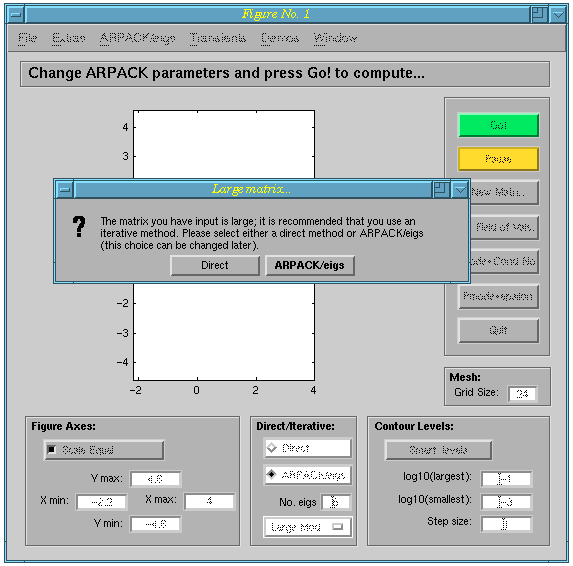

If the matrix is larger than 1000 then the Schur decomposition can be prohibitively expensive. In this case, EigTool offers the user the choice of using iterative methods instead (ARPACK/eigs) to compute a few eigenvalues of interest. As an example, consider eigtool(triu(randn(1001),-1)): EigTool asks whether you would like to use iterative methods:

EigTool and randn(1001)

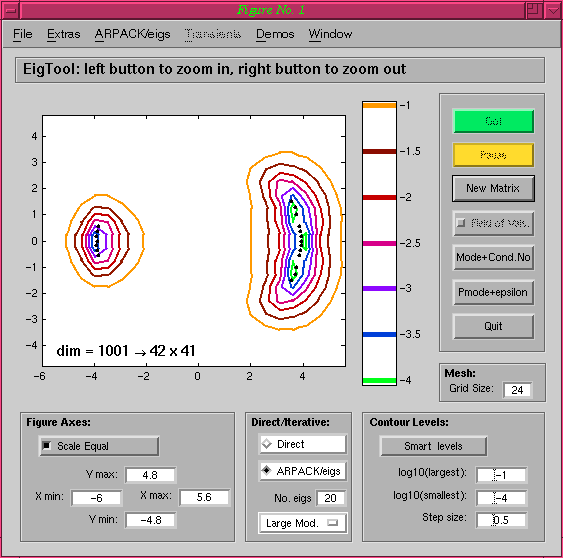

If we click on ARPACK/eigs, and ask for 20 eigenvalues of largest modulus, EigTool fairly quickly produces the following plot, which is obtained by projecting the original matrix onto a lower dimensional invariant subspace, and approximating the pseudospectra with the pseudspectra of this projected matrix:

EigTool and triu(randn(1001),-1)

Sparse Square Matrices

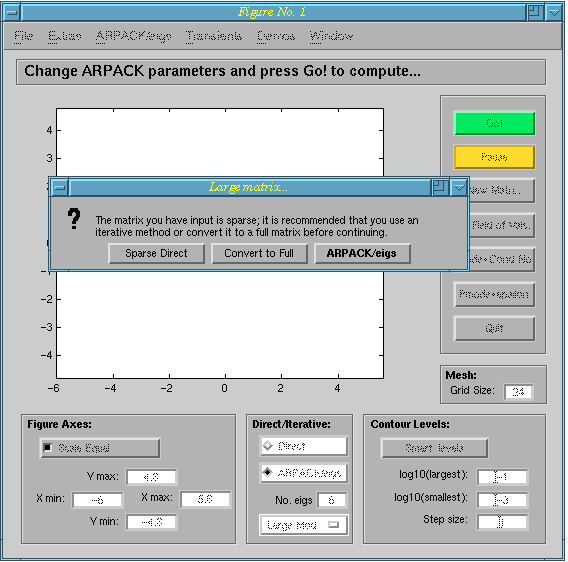

The case of sparse, square matrices is a little more complicated. If the matrix is small (dimension less than 1000), you will be offered the chance to convert it to a dense matrix, and the proceed using the techniques described
above. Assuming that this is not done, there are two possibilities: you can use iterative methods (ARPACK/eigs) to compute some eigenvalues and approximate the pseudospectra locally, or you can use a direct method to compute the (exact) pseudospectra only in a user-specified region. This is particularly useful when trying to see how well the approximate pseudospectra match the true ones. As an example, we use the matrix pde225 from Matrix Market: cd eigtool/private/; eigtool(mmread('pde225.mtx'));

EigTool and
pde225.mtx

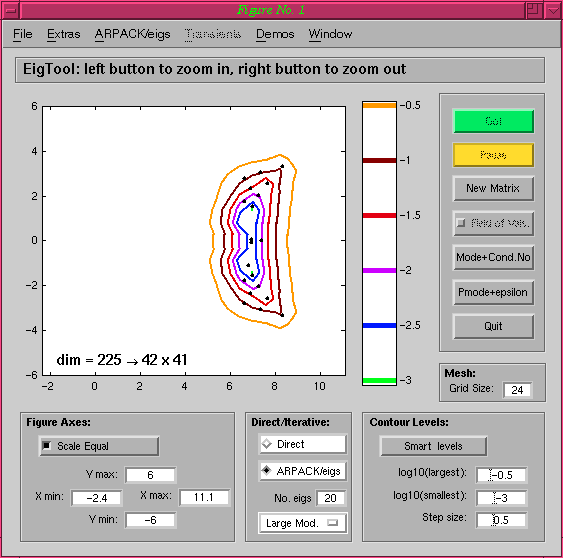

Using ARPACK/eigs, looking for 20 eigenvalues of largest modulus, we get the following eigenvalues and approximate pseudospectra:

EigTool and pde225.mtx (ARPACK/eigs)

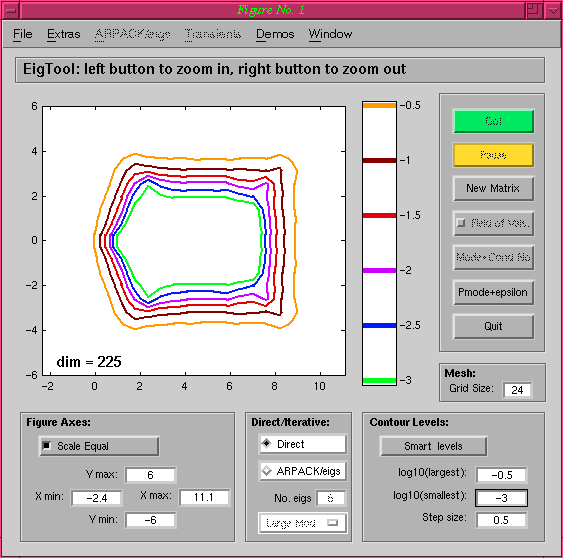

Repeating the above command, but selecting Sparse Direct gives us the exact pseudospectra (but no eigenvalues):

EigTool and pde225.mtx (Sparse direct)

Note that when using a sparse direct method, you will be prompted for the axes to compute on unless you provide eigenvalues using the options.

Dense Rectangular Matrices

The final class of matrices that EigTool can handle are those that are dense and rectangular. The most common need for this kind of matrix is the rectangular (n+1)-by-n Hessenberg matrix created by eigs, whose pseudospectra are subsets of the pseudospectra of the original matrix. EigTool can handle general rectangular matrices, though. Since rectangular matrices have no eigenvalues in general, EigTool will prompt for axes to compute the pseudospectra over, before behaving in the usual way.
