ARPACK/eigs Menu

Note that this menu will only be enabled when the ARPACK/eigs option is selected in the Direct/Iterative pane. ARPACK is a Fortran code for computing eigenvalues of large, sparse matrices; eigs in MATLAB calls the Fortran ARPACK routines directly.

If a menu item in the table below is a hyperlink, click to see examples.

Maximum Subspace Size (p)...  Select the maximum size that eigs will build a subpace out to (opts.p).
Convergence Tolerance (tol)...  Set the convergence tolerance for eigs (opts.tol)
Maximum Number of Restarts (maxit)...  Set the maximum number of restarts to take before quitting (opts.maxit)
Starting Vector (v0)...  Set the starting vector for eigs to use; you will be prompted to enter a MATLAB command to create the vector (opts.v0)
Automatic Axes  If this item is toggled on, the axes will automatically adjust during the eigs computation to ensure that all the Ritz values and shifts are visible. Once the axes are changed manually, this option is automatically deselected; to use automatic axes again, you need to select this menu item.
Show Progress...Ritz Values/Shifts Display the eigenvalues of the current projected matrix H at each implicit restart. Those being used as shifts will be drawn as red pluses, with those Ritz values that approximate the desired eigenvalues (not used as shifts) plotted as black dots
 All ShiftsSame as above, but all of the shifts used so far will be plotted.
 Pseudospectra Compute the pseudospectra of the rectangular Hessenberg matrix at each implicit restart; this can give some idea of the nonnormality of the problem as the computation proceeds. Note that using this option will slow down the computation, especially when the original matrix is small.

Some specific examples

Show Progress...Ritz Values/Shifts

This is the default option when computing eigenvalues using ARPACK/eigs. Below we see the Elliptic PDE

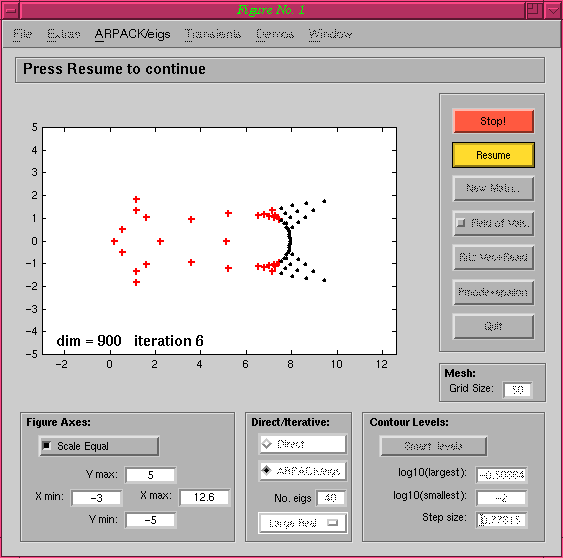

Demo after 6 implicit restarts: the eigenvalues of the projected matrix being shifted with are shown as red plusses, with those being kept as black dots.

EigTool: Elliptic PDE with eigs (current shifts)

Show Progress...All Shifts

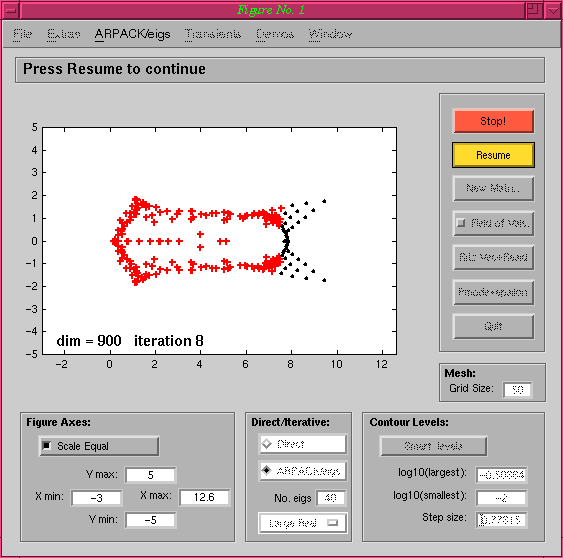

It can often be useful to see not only the shifts being used at the current implicit restart, but all those that have been used already. In the figure below, we see all the shifts used up to (and including) the 8th implicit restart:

EigTool: Elliptic PDE with eigs (all shifts)

Show Progress...Pseudospectra

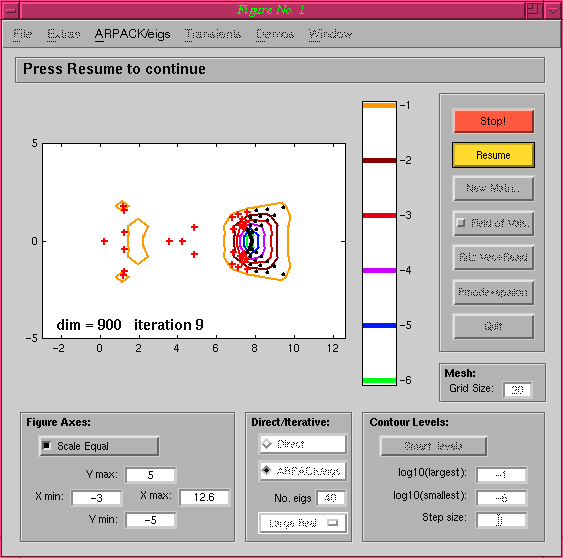

The final option for viewing progress during an eigs computation is to see the pseudospectra of the rectangular Hessenberg matrix after each implicit restart, which gives some idea of the nonnormality of the problem as the iteration progresses. The figure below shows the pseudospectra of the Hessenberg matrix after the 9th implicit restart:

EigTool: Elliptic PDE with eigs (pseudospectra)
